What We Built

A live SCADA link from the Hycons BioCNG plant to the GOBARdhan ministry portal. Each HMI poll is mapped to Integration Guide V1.3, signed, and posted to gobardhan.gov.in, with a plant monitor that shows the portal result without changing the plant.

Discuss similar project

HTTP 202 acceptedRegistered plant deviceGuide V1.3 limitsSigned HMI pollsHour poll record

Challenge

HYCONS had to report purified biogas quality and flow to GOBARdhan on the official SCADA telemetry API. The plant HMI already publishes analyser and flow readings, while the ministry guide rejects a whole reading when methane, carbon dioxide, oxygen, sulphur or moisture falls outside fixed limits.

Solution

KabootarX connected the HMI stream to a signed GOBARdhan client for the plant device. Gas quality and the purified biogas meter are sent on each poll. Meters that are not installed yet are sent as zero and labelled for later. Operators watch acceptance, guide limits and the hour-by-hour poll record from the same Hycons portal.

Complete scope

Delivered Modules

Signed telemetry posts to gobardhan.gov.in for the plant deviceLive ministry-portal monitor with the latest HTTP result and batch idGas quality cards for methane, carbon dioxide, oxygen, combined inerts, hydrogen sulphide, total sulphur and moistureGuide V1.3 limit checks shown on every quality and flow cardPurified biogas flow and totalizer from the installed plant meterPlaceholder zeros for slurry, raw biogas and dispatch meters until those meters are addedHour record with one row per poll, including portal statusGuidelines view of the SCADA Integration Guide V1.3 rules the plant follows

Business impact

Problems Resolved

Plant readings now reach the GOBARdhan portal as accepted SCADA telemetryOperators can see HTTP 202 acceptance without leaving the Hycons monitorOut-of-guide gas values are visible against the ministry limits before a reading is trustedMissing meters stay explicit instead of being mixed into the purified biogas totalEach hour keeps a poll-by-poll record of what was sent and how the portal answeredThe monitor only displays the exchange. It does not write setpoints back to the plant

Built for reliability

Project Stack

01HMI telemetry02GOBARdhan SCADA API03Integration Guide V1.304Signed HTTPS posts05Hycons plant monitor06Hour poll history07Registered plant device

UI Screens Delivered

GOBARdhan SCADA Telemetry experience

Move through the delivered screens and open any view at full size.

Role-based experience

GOBARdhan monitor

3 screens

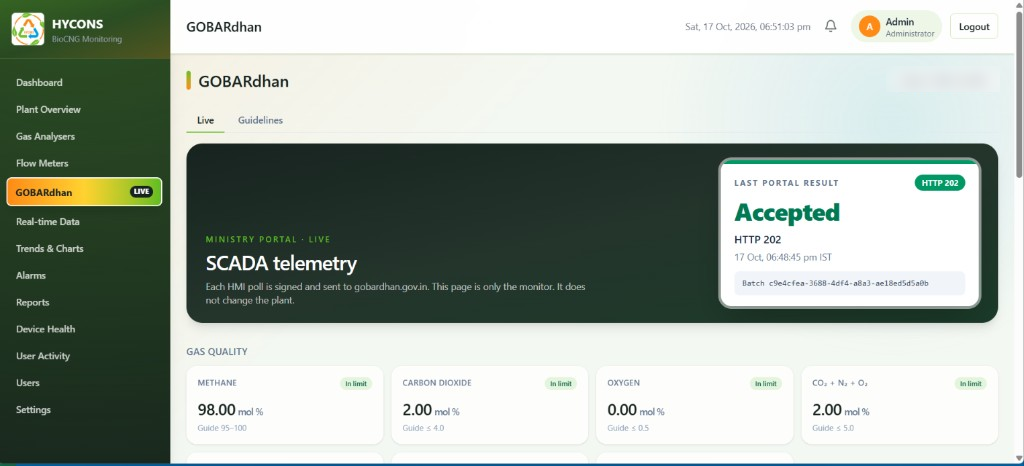

GOBARdhan SCADA Telemetry - Ministry portal live — GOBARdhan monitorMinistry portal liveLive SCADA telemetry card with an accepted HTTP 202 result, batch id, and gas quality against the ministry guide limits.

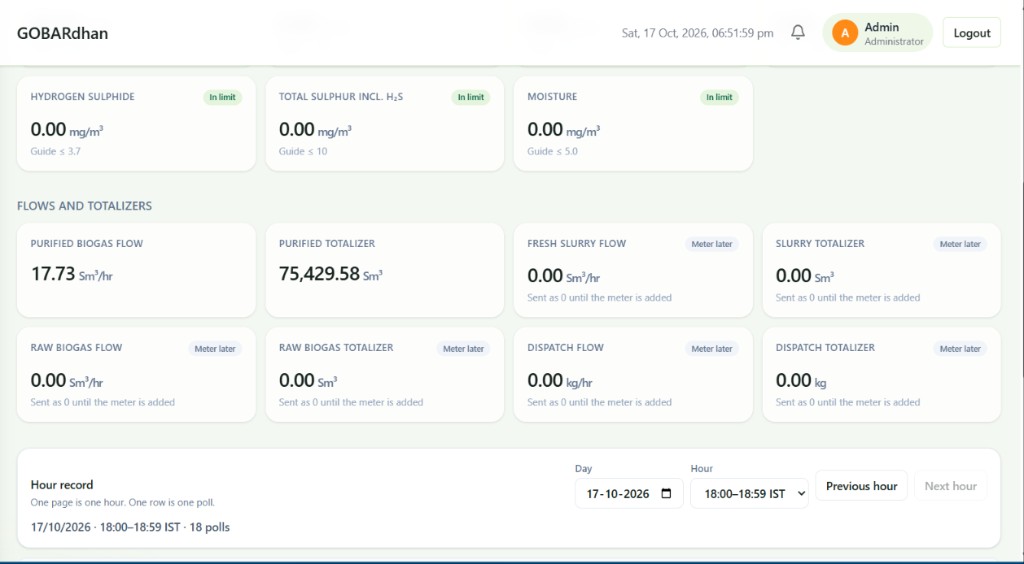

GOBARdhan SCADA Telemetry - Flows and totalizers — GOBARdhan monitorFlows and totalizersPurified biogas flow and totalizer from the installed meter, with slurry, raw biogas and dispatch held at zero until those meters are added.

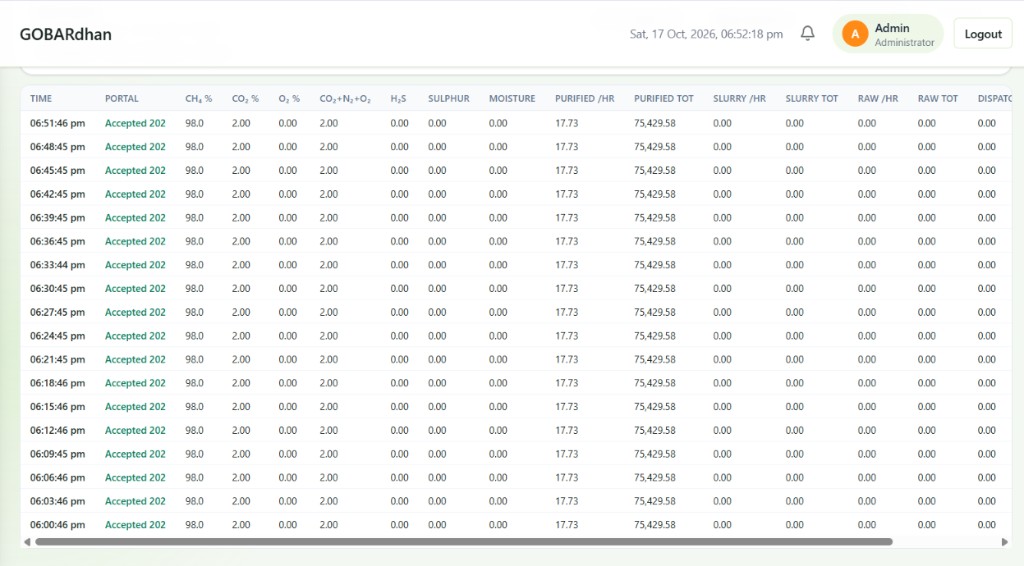

GOBARdhan SCADA Telemetry - Hour poll record — GOBARdhan monitorHour poll recordOne row per HMI poll for the selected hour, each marked Accepted 202 with methane, carbon dioxide, sulphur, moisture and purified flow.
